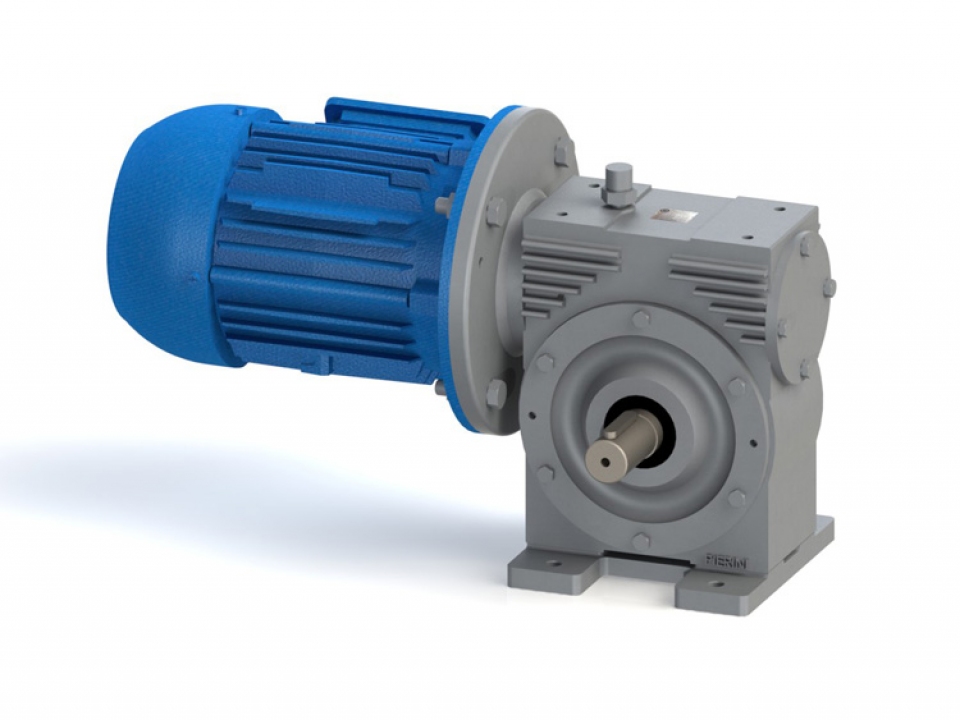

The PRA worm gear motor can be supplied with input flange or adapters with coupling.
Flanges are applied in all PRA line, and the motor’s type are IEC (FF” B5” or “C”Din “B14”).
The adapters with coupling are used in the model’s PRA02, PRA03 and PRA04, with type motor’s IEC (FF “B5”).
The direct mounting with motors is made with input flanges or adapters with coupling, ensuring perfect alignment between the motor and reducer.
To define the perfect assembly with electric motors in necessary to inform the frequency, electric tension, polarity, if there is brake system, and other characteristics.

Reference technical data

Reduction ratio	1:7.5 to 1:100
Power	Up to 15 hp
Torque	See catalog or Pierini engineering
Lubrication	Mineral oil — level per manual
Temperature	-10 °C to +40 °C (covered environment)
Mounting	Flange / foot / tower — per model
Type	PRA gearmotor
Motor	Motor coupled per catalog
Line	PRA
Application	Plastics industry and compact equipment

Applications: Plastics, Food industry

Model	Reduction	Power (hp)
PRA-01	15 20 25 30 40 50 60	0,25 to 0,33 0,25 to 0,33 0,25 0,25 to 0,33 0,16 a 0,25 0,12 a 0,16 0,12 to 0,16
PRA-02	10 15 20 25 30 40 50 60	0,50 to 0,75 0,50 to 0,75 0,50 to 0,75 0,33 a 0,75 0,33 to 0,50 0,25 a 0,50 0,16 to 0,33 0,16 to 0,25
PRA-03	10 15 20 25 30 40 50 60 80	0,75 to 1,5 0,75 to 1,5 0,75 to 1,5 0,75 to 1,5 0,50 to 1 0,50 to 1 0,33 to 0,75 0,25 to 0,50 0,25 to 0,33
PRA-04	7,5 10 15 20 25 30 40 50 60 80	1,5 to 2 1,5 to 2 1,5 to 2 1,5 to 2 1,5 to 2 1 to 2 1 to 1,5 0,75 to 1 0,5 to 1 0,33 to 0,75
